Specifications

Model

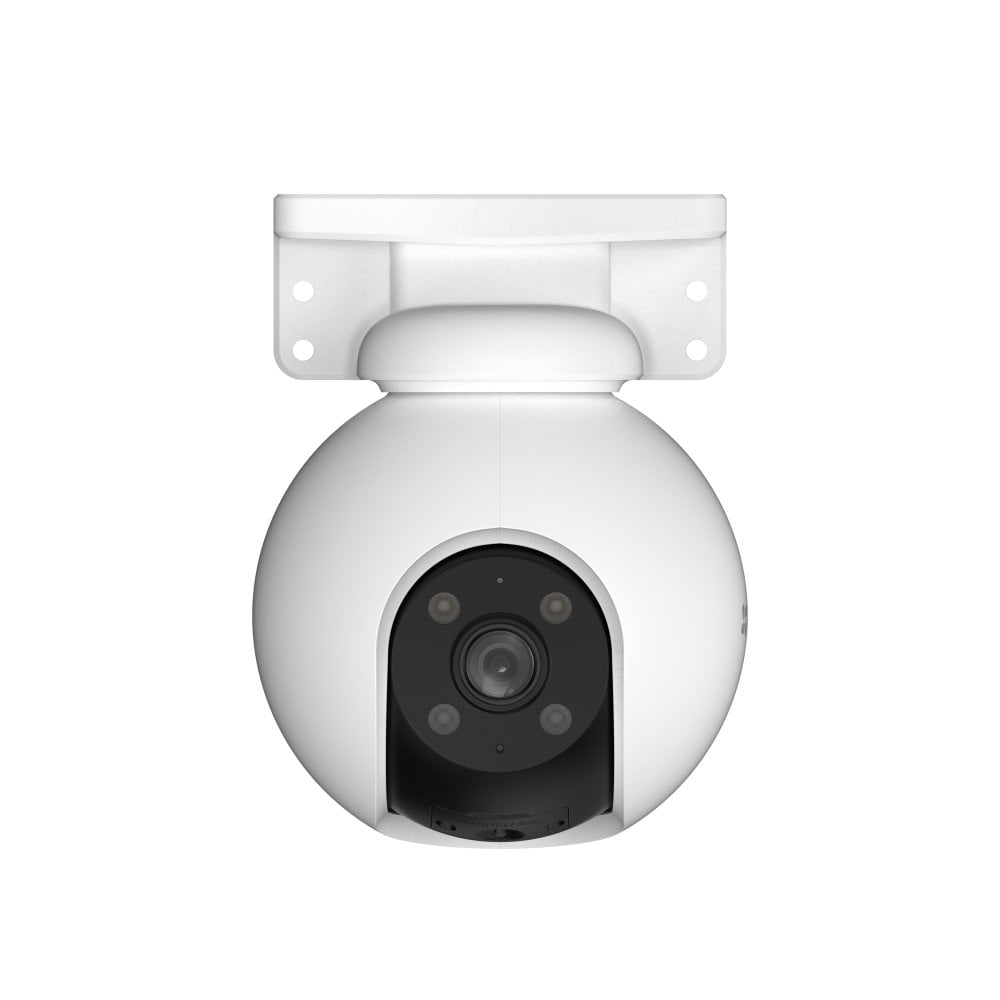

CS-HB8 (4MP)

Camera

Image Sensor

1/3” 4-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination

0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)

Shutter Speed

Self-adaptive shutter

Lens

4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)

PT Angle

Pan: 340°, Tilt: 65°

Day & Night

IR-Cut filter with auto-switching

DNR

3D DNR

Night Vision

Up to 49 ft / 15 m

Video & Audio

Max. Resolution

2560 × 1440

Frame Rate

15fps. Self-Adaptive during Network Transmission

Video Compression

H.265 / H.264

Video Bit Rate

Quad HD; HD; Standard. Adaptive Bit Rate.

Audio Bit Rate

Self-Adaptive

Max. Bitrate

2 Mbps

Network

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20 MHz

Security

64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

Wi-Fi Pairing

AP pairing

Protocol

EZVIZ cloud proprietary protocol

Interface Protocol

EZVIZ cloud proprietary protocol

Minimum Network Requirement

4Mbps

Function

Detection

Smart Human Motion Detection

Two-way Talk

Supports

General Function

Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage

Build-In 32GB eMMC Storage

Cloud Storage

Supports EZVIZ CloudPlay storage (Subscription required)

General

Operating Conditions

-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)

IP Grade

Weatherproof Design

Power Consumption

Max. 10W

Product Dimensions

183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)

Packaging Dimensions

216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)

Weight

Net: 803 g (28.32 oz) With package: 1060 g (37.39 oz)

Battery

Battery Capacity

10400 mAh

Power Supply

DC 5V / 2A

In the box

In the box

- HB8 2K⁺ Camera

- Drilling Template

- USB Cable

- Screw Kit

- Quick Installation Guide

- Regulatory Information

- Quick Start Guide

Certifications

Certifications

CE / FCC / WEEE / RoHS / REACH / UL
