Specifications

Model

CS-H8-R100-1H3WKFL

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Shutter Speed

Self-Adaptive shutter

Lens

4mm @ F1.6, Viewing angle: 46° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm @ F1.6, Viewing angle:28° (Vertical), 54° (Horizontal), 62° (Diagonal)

PT Angle

Pan: 340°, Tilt: 80°

Minimum Illumination

0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

Digital WDR

Night Vision Distance

Up to 30m / 98ft

Video & Audio

Max. Resolution

2304 x 1296

Frame Rate

Max: 30fps; Self-Adaptive during network transmission

Video Compression

H.265 / H.264

H.265 Type

Main Profile

Video Bit Rate

Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate

Self-Adaptive

Max. Bitrate

2 Mbps

Network

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20 MHz

Security

WPA-PSK / WPA2-PSK

Transmission Rate

11b 11 Mbps, 11g 54 Mbps, 11n 72 Mbps

Wi-Fi Pairing

AP pairing

Protocol

EZVIZ Cloud Propriet ary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Wired Network

RJ45 × 1(10M / 100M Adaptive Ethernet Port)

Storage

Local Storage

Supports Micro SD card (Up to 512GB)

Cloud Storage

Supports EZVIZ CloudPlay storage (Subscription required)

Function

Smart Alarm

AI-Powered Human / Vehicle Shape Detection, Motion Detection

Auto Tracking

Supports

Customized Alert Area

Supports

Two-way Talk

Supports

General Function

Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General

Operating Conditions

-30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)

IP Grade

Weatherproof Design

Power Supply

DC 12V / 1A

Power Consumption

MAX. 6W

Dimensions

116 × 153.2 × 163.8 mm (4.57 × 6.03 × 6.45 inch)

Packaging Dimensions

187 × 174 × 186.5 mm (7.36 × 6.85 × 7.34 inch)

Weight

Net Weight: 592 g (20.88 oz) With Package: 943 g (33.26 oz) For EU Standard Version

In the box

In the box

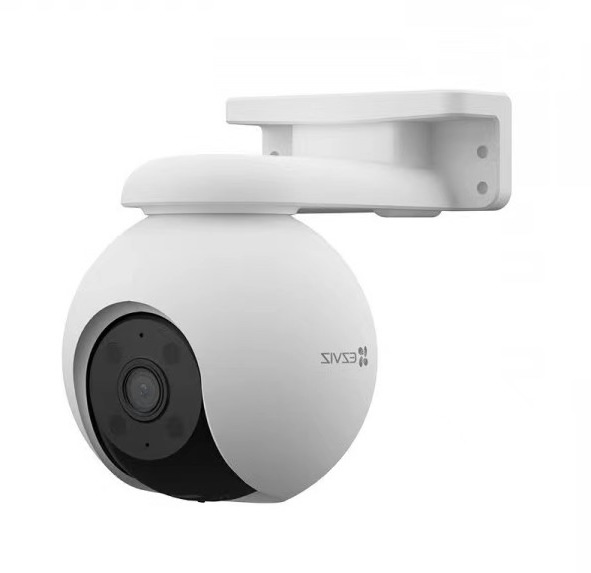

- H8 Pro 2K Camera

- Power Adapter

- Screw Kit

- Waterproof Kit

- Drilling Template

- Regulatory Information

- Quick Start Guide

Certifications

Certifications

UL / FCC / CE / WEEE / RoHS / UKCA
