Specifications

Model

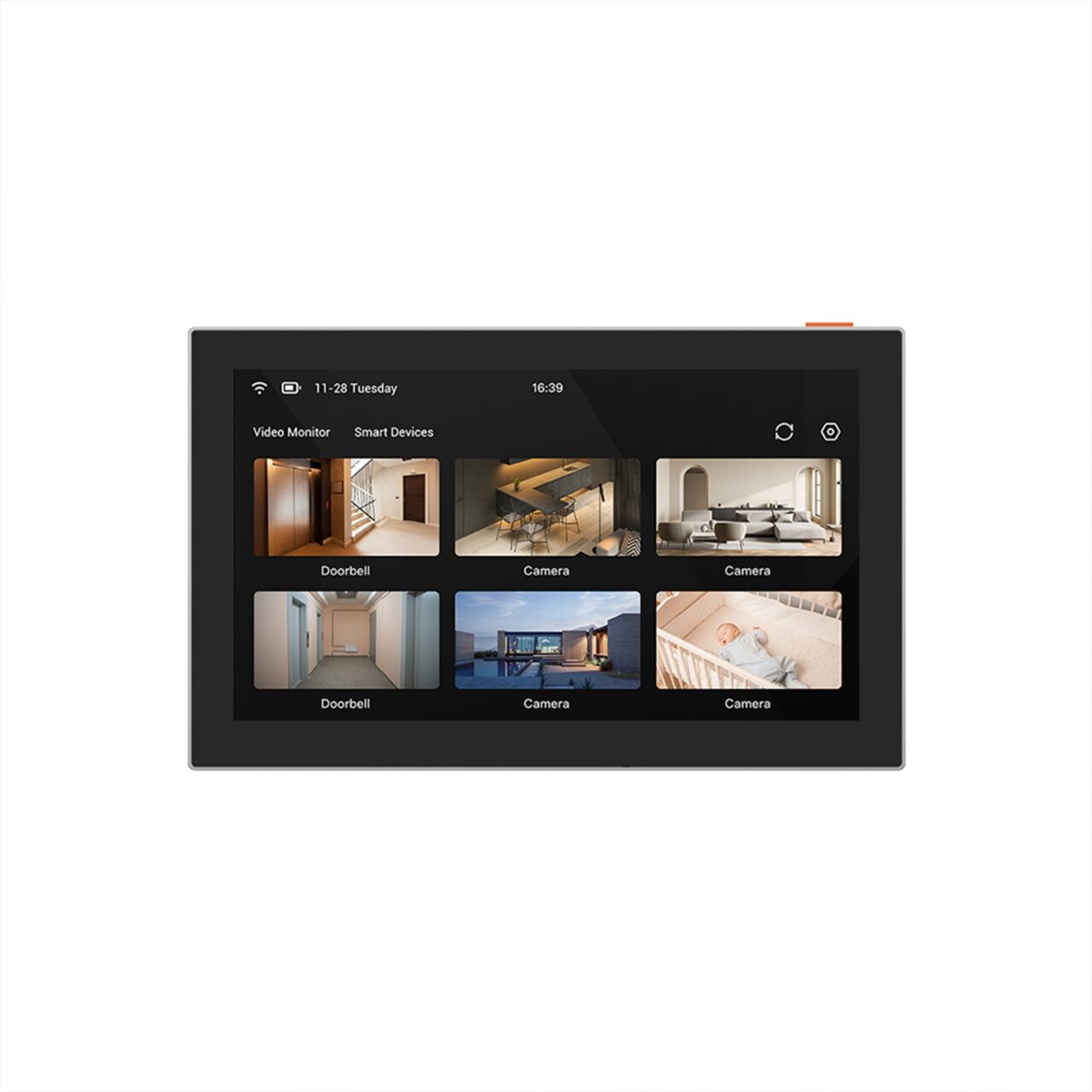

CS-SD7-R100-1WTC

Screen

Screen size

6.97 inch

Resolution

1024 × 600

Touch Screen

Supports

Screen Type

IPS Full Screen

Battery

Battery Capacity

4600 mAh

Interface

Audio Input

Built-in high-sensitivity microphone

Audio Output

Built-in high-power speaker

Button

One-switch button

Connectivity

Maximum Access Pixels

Up to 30 EZVIZ Devices (Supports more devices with future OTA upgrade)

Connected Device

4K (Playback supports 5MP maximum)

Protocol

EZVIZ Cloud Proprietary Protocol

General Function

Live View, Video Playback, Cloud Video Encryption

Wireless Parameters

Wireless Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Safety

64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK, WPS

Transmission Rate

11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

General Specification

Operating Temperature

0°C to 40°C

Operating Humidity

less than 95% (No condensation)

Product Size

180.3 × 111.6 × 15.6 mm (7.10 × 4.39 × 0.61 inch)

In the box

In the box

- SD7 Smart Screen

- Type-C Cable

- Wall Bracket

- Installation Sticker

- Double-sided Sticker

- Screw Kit

- Quick Start Guide

Certifications

Certifications

CE / WEEE / RoHS / REACH
