Specifications

Model

CS-BC1C (4MP, W1)

Camera Parameters

Image Sensor

1/2.8” 4-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination

0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

Self-adaptive shutter

Lens

2.8 mm @ F1.6;116° (Diagonal), 100° (Horizontal), 52° (Vertical)

Lens Mount

M12

Day & Night

IR-cut filter with auto switching

DNR

3D DNR

Night Vision

10 m / 30 ft

Video & Audio

Max. Resolution

2560 × 1440

Frame Rate

15 fps. Self-adaptive during network transmission

Video Compression

H.265 / H.264

Video Bit Rate

Quad HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate

Self-Adaptive

Max. Bitrate

2Mbps

Network

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20MHz

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b: 11Mbps,11g :54Mbps,11n :72Mbps

Wi-Fi Pairing

AP pairing

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Minimum Network Requirement

2Mbps

Function

Smart Alarm

AI-powered Human Shape Detection

Two-way Talk

Supports

General Function

Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage

Build-in 32GB eMMC Storage

Cloud Storage

EZVIZ cloud storage

General

Operating Conditions

-20°C to 50°C (-4°F to 122 °F ), Humidity 95% or less (non-condensing)

IP Grade

IP 66

Power Supply

DC 5V/2A

Battery Capacity

10400 mAh

Power Consumption

Max. 5W

Product Dimensions

104.76 × 62.80 × 62.80 mm (4.12 × 2.47 × 2.47 inch)

Packaging Dimensions

186.0 × 103.0 × 103.0 mm (7.3 × 4.0 × 4.0 inch)

Weight

Product: 365 g (12.8 oz)

With Package: 835 g (28.4 oz)

In the box

In the box

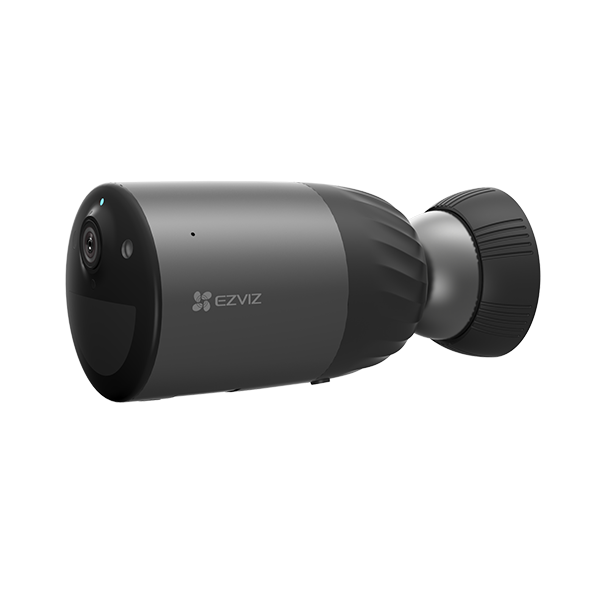

- EZVIZ eLife 2K+ Battery Camera

- Magnetic Base

- Screw Base

- Power Adapter

- USB Cable

- Mounting Plate

- Drill Template

- Screw Kit

- Regulatory Information

- Quick Start Guide

Certifications

Certifications

CE/FCC/WEEE/ROHS/REACH/UL
