Specifications

Model

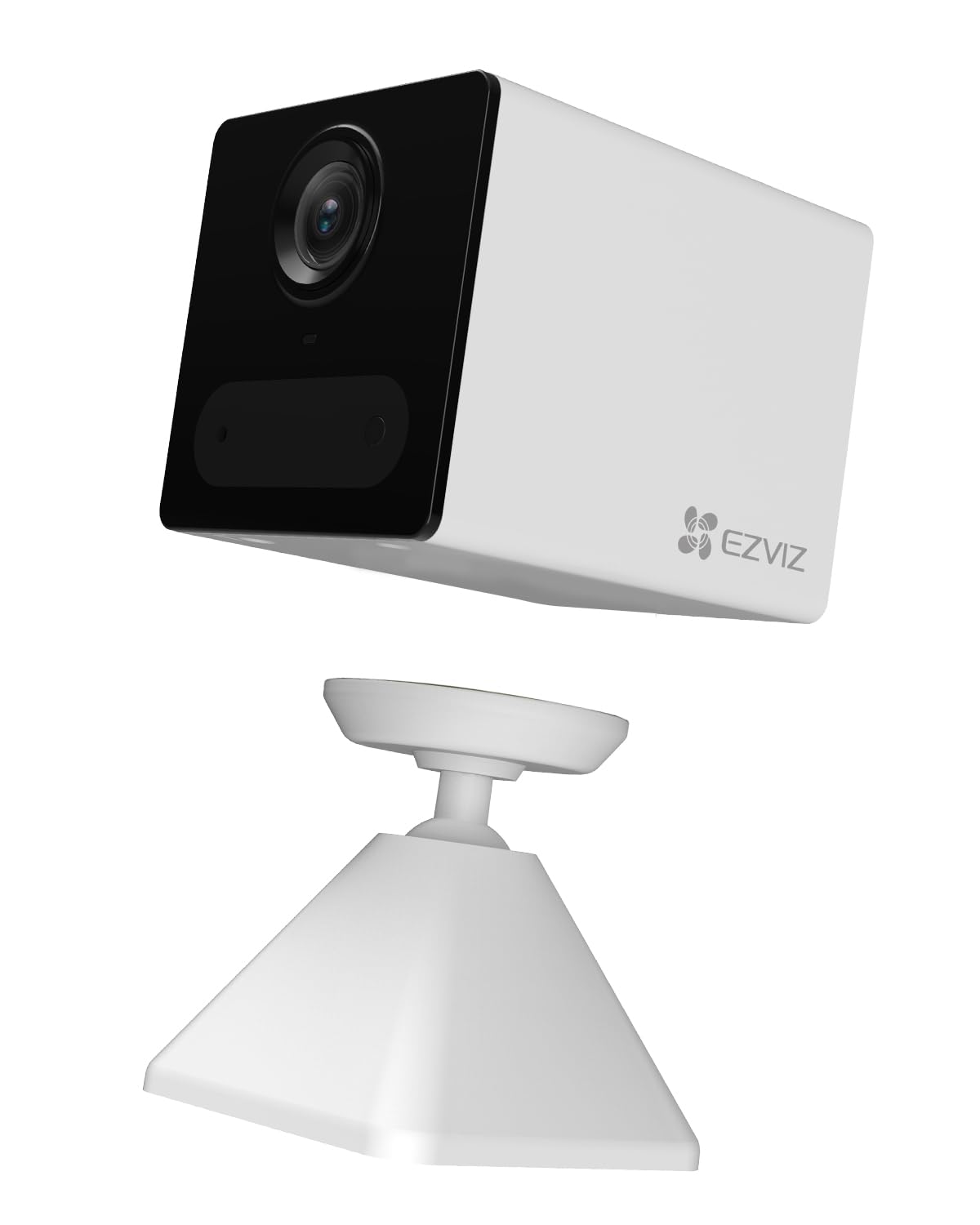

CS-CB2-R100-2D2WF

Camera

Image Sensor

1/2.8” 2-Megapixel Progressive Scan CMOS Sensor

Shutter Speed

Self-Adaptive Shutter

Lens

4 mm @ F1.6, view angle: 100°, 85° (Diagonal), 46° (Horizontal)

Night Vision

Max. 5 m / 16 ft

Minimum Illumination

0.1 Lux

Lens Mount

M12

Day & Night

IR-cut Filter with Auto Switch

DNR

3D DNR

Network

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20 MHz

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

Wi-Fi Pairing

AP pairing

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Wired Network

Does not support

Minimum Network Requirement

1 Mbps

Video & Audio

Max. Resolution

1920 × 1080

Frame Rate

15fps. Self-Adaptive during Network Transmission

Video Compression

H.265 / H.264

Video Bit Rate

Full HD; Hi-Def; Standard

Audio Bit Rate

Self-Adaptive

Max. Bitrate

1 Mbps

Function

Smart Alarm

Supports smart human motion detection

Customized Alert Area

Supports

Two-way Talk

Supports

Storage

Local Storage

Supports microSD card (Up to 512 GB)

Cloud Storage

Supports EZVIZ CloudPlay storage (subscription required)

General

Operating Conditions

-10°C to 45°C (14°F to 113 °F ), Humidity 95% or Less (Non-condensing)

Power Supply

DC 5V/1A (Purchased Separately)

Battery Capacity

2000 mAh

Dimensions

50.5 × 39.1 × 39.1 mm (1.99 ×1.54 × 1.54 inch)

Packaging Dimensions

126 × 91× 50 mm (4.96 × 3.58 × 1.97 inch)

Net Weight

86.8 g (3.06 oz)

With Package

273g (9.63 oz)

In the box

In the box

- CB2 Camera

- Magnetic Base

- Power Cable

- Foam Sticker

- Mounting Metal Plate

- Regulatory Information

- Quick Start Guide

Certifications

Certifications

CE / WEEE / RoHS / REACH / UL
