Specifications

Specifications

Model

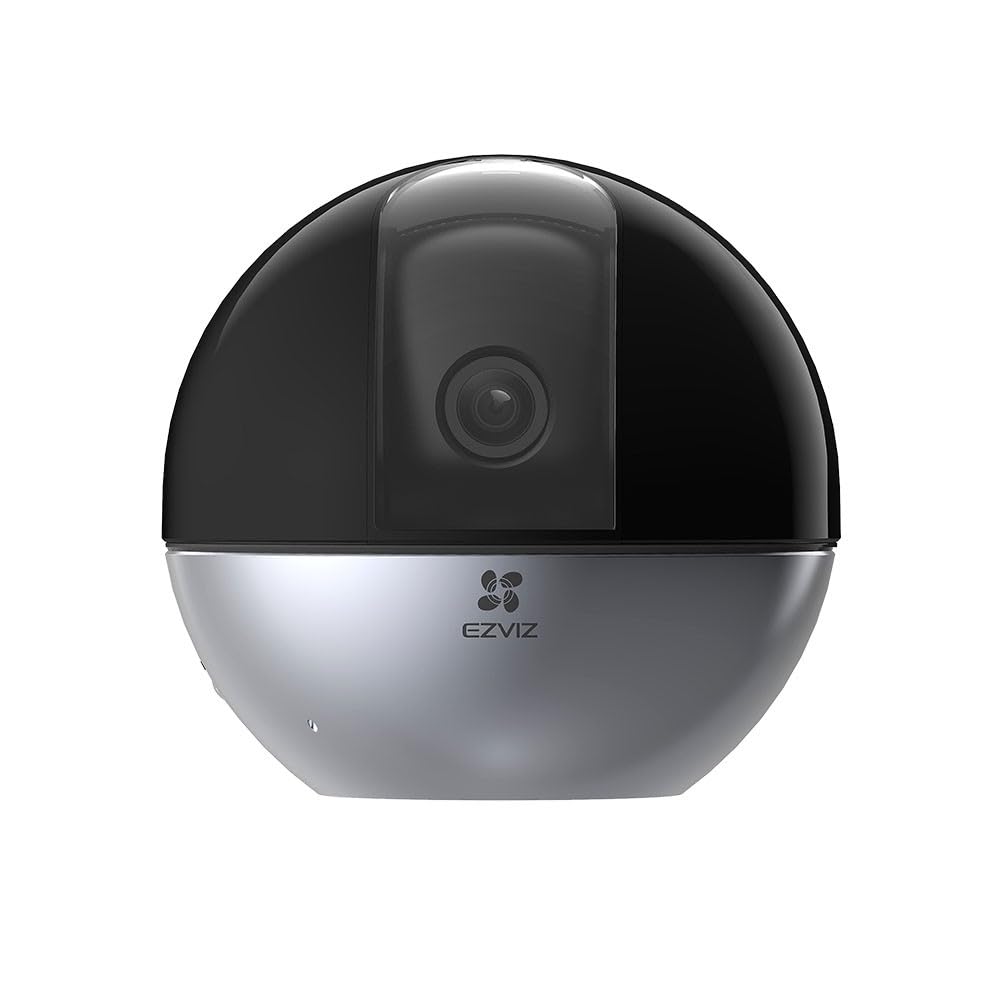

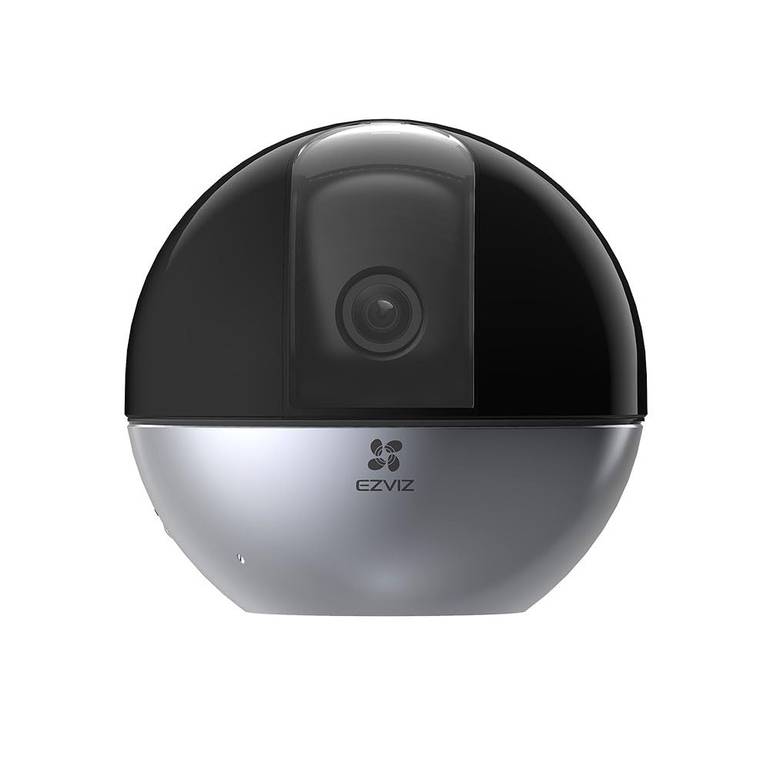

CS-E6-A0-8C5WF

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Shutter Speed

Self-adaptive shutter

Lens

4mm @ F2.0, viewing angle: 87° (Horizontal), 48° (Vertical), 103° (Diagonal)

PT Angle

Pan: 350°, Tilt: 75°

Minimum Illumination

0.51 Lux @ (F2.0, AGC ON), 0 Lux with IR

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

WDR 80dB

BLC

Supports

Night Vision

Up to 10 m / 32.8 ft

Video & Audio

Max. Resolution

2880 × 1620

Frame Rate

Self-Adaptive during network transmission

Video Compression

H.265 / H.264

Video Bit Rate

Ultra-HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate

Self-Adaptive

Max. Bitrate

5 Mbps

Network

Wi-Fi Standard

IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac

Frequency Range

2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz，5735~5835 MHz

Channel Bandwidth

Supports 40 MHz

Security

WPA-PSK / WPA2-PSK

Transmission Rate

11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7

Wi-Fi Pairing

AP pairing

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Wired Network

RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Storage

Local Storage

Supports microSD card (Up to 512 GB)

Cloud Storage

Supports EZVIZ CloudPlay storage (Subscription required)

Function

Smart Alarm

AI-Powered Human Shape Detection / Pet Detection / Gesture Recognition / Voice Activity Detection / Bark

and Meow Detection

Two-Way Talk

Supports

General Function

Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

General

Operating Conditions

-10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing)

Power Supply

DC 5V/2A

Power Consumption

Max. 8W

Dimensions

95.8 × 95.8 × 90.6 mm (3.77 × 3.77 × 3.57 inch)

Packaging Dimensions

116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch)

Weight

Net weight: 252 g (8.89 oz) With package: 513 g (1.13 oz)

In the box

In the box

- E6 Camera

- Power Adapter

- Power Cable

- Drill Template

- Mounting Plate

- Regulatory Information

- Quick Start Guide

- HomeKit Setup Instruction

Certifications

UL / CE / RoHS / WEEE / REACH / FCC / UKCA
