Specifications

Model

CS-H6c-R105-1J4WF

Camera

Resolution

4MP /2K+ Resolution

Image sensor

F1.6@1/3" Progressive Scan CMOS

Shutter Speed

Self-adaptive shutter

Lens

4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical)

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

Digital WDR

Compression

Video Compression

H.264/H.265

Video Bit Rate

Adaptive bit rate.


Max. Resolution

2560 × 1440

Frame Rate

Max:30fps; Self-Adaptive during network transmission

Network

Smart Alarm

Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

Wi-Fi Pairing

AP paring

Protocol

EZVIZ cloud proprietary protocol

Interface Protocol

EZVIZ cloud proprietary protocol

Interface

Storage

Micro SD card slot (Max. 512G)

Power

TYPE-C

Wired Network

RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard

IEEE802.11a, 802.11b, 802.11g, 802.11n,

Frequency Range

2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz

Channel Bandwidth

Supports 20MHz

Security

WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7

Output Power(EIRP)

19 dBm

Antenna Gain

1.9 dBi

General

Operating Conditions

-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply

DC 5V/2A

Power Consumption

8W max

IR Range

MAX. 10 meters(32.81ft)

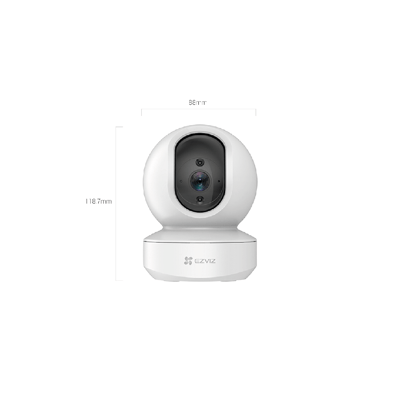

Dimensions

88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions

103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)

Bare Weight

252g / 8.9oz

In the box

In the box

- Camera

- Power Adapter

- Power Cable

- Drill Template

- Mounting Plate

- EZVIZ Screw Kit

- Regulatory Information

- Quick Start Guide

Certifications

Certifications

CE / UL / WEEE / REACH / RoHS / UKCA
