Specifications

Model

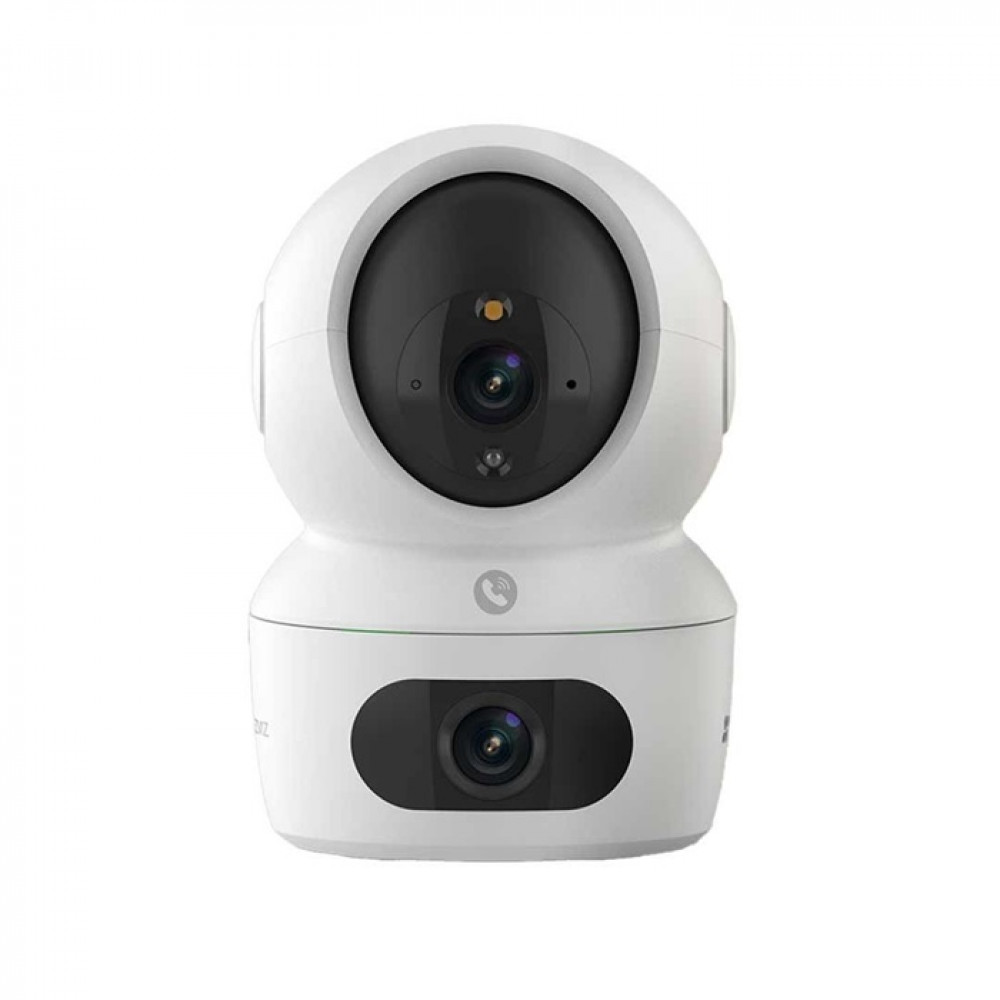

CS-H7c-R100-8G44WF

Camera

Resolution

Dual 2K+ Resolution

Image Sensor

1/3" Progressive Scan CMOS

Shutter Speed

Self-adaptive shutter

Fixed Lens

[email protected] , view angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)

PT Lens

[email protected] , view angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

Digital WDR

Compression

Video Compression

H.264/H.265

Video Bit Rate

Adaptive bit rate.

Network

Smart Alarm

Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection

Wi-Fi Pairing

AP paring

Protocol

EZVIZ cloud proprietary protocol

Interface Protocol

EZVIZ cloud proprietary protocol


Max. Resolution

2560 × 1440

Frame Rate

Max:30fps; Self-Adaptive during network transmission

Interface

Storage

Micro SD card slot (Max. 512G)

Power

TYPE-C

Wired Network

RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard

IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax

Frequency Range

2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz

Channel Bandwidth

2.4GHz Supports 20MHz 5GHz Supports 80MHz

Security

WPA-PSK, WPA2-PSK, WPA3-Personal

Transmission Rate

2.4GHz Max. Rate Support: 11b_11M，11g_54M, 11n_MCS7_20M，11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M，11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M

Output Power(EIRP)

20 dBm

Antenna Gain

[email protected]，[email protected]

General

Operating Conditions

-10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)

Power Consumption

8W max

Power Supply

DC 5V/2A

IR Range

MAX. 10 meters (32.81ft)

Dimensions

88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)

Package Dimensions

200 ×105 ×105 mm (7.87 × 4.13 × 4.13 in)

Net Weight

270 g (9.52 oz)

Bare Weight

499 g (17.60 oz)

In the box

In the box

- Camera (x1)

- Power Adapter (x1)

- Power Cable (x1)

- Drill Template (x1)

- Mounting Plate (x1)

- Screw Kit (x1)

- Regulatory Information (x1)

- Quick Start Guide (x1)

Certifications

Certifications

CE / UKCA / WEEE / RoHS / REACH / UL
