Model Parameters

Model

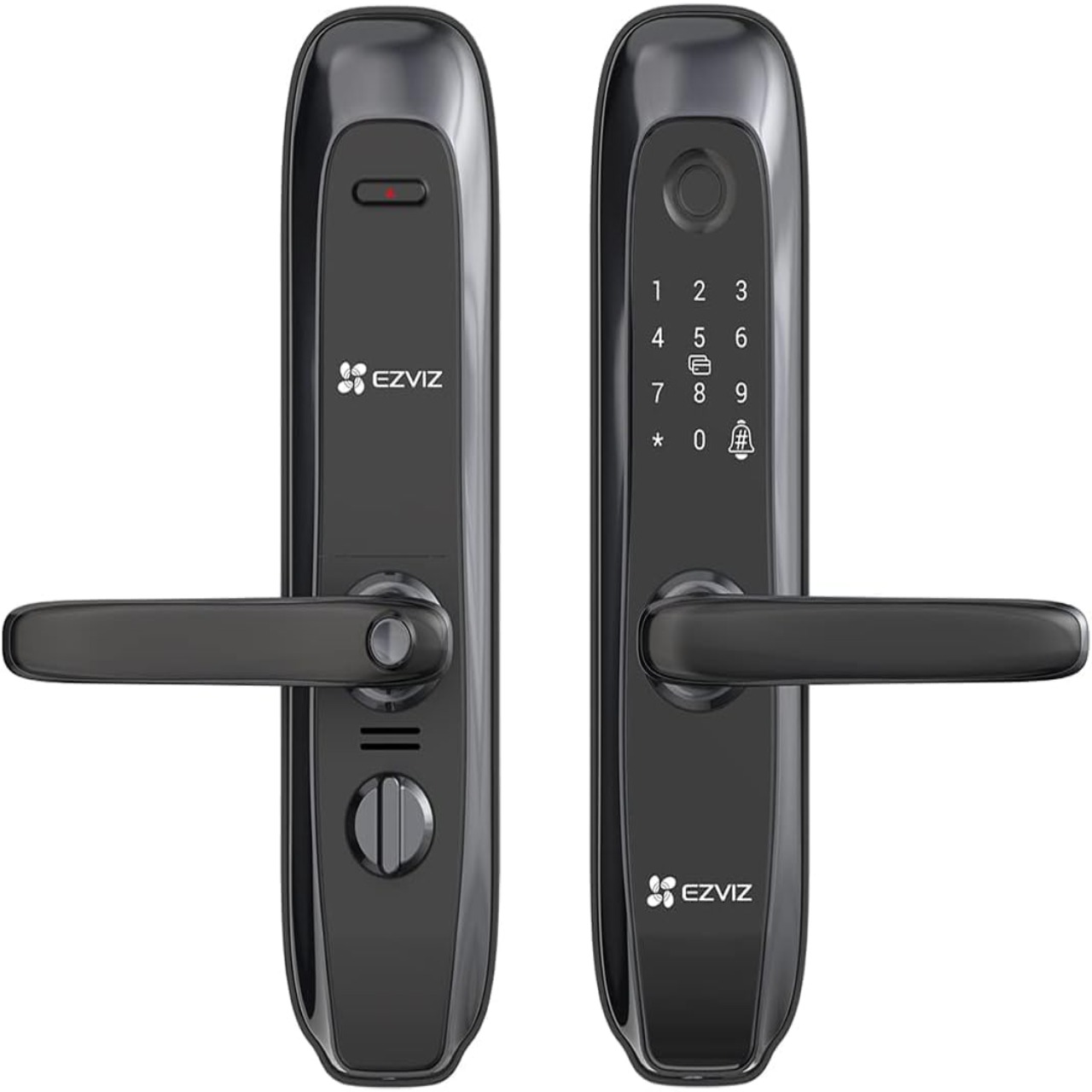

CS-L2-11FCP (A0) (Black)

Technical Parameters

Access Modes

Fingerprint, Password, Proximity Card (CPU Card), Mechanical Key

Fingerprint Sensor

Semiconductor

Fingerprint Scanner Resolution

508 Dpi

Fingerprint Recognition Angle

360°

Fingerprint Capacity

50

Password Capacity

50

Number of Proximity Card

50

Proximity Card Read Range

0 to 8 mm (0 to 0.31 inch)

Function

Scramble Code

Supports (the correct password is 6 to 10 digits, and the anti-peeping password should be less than 20 digits)

Anti-Prying Alarm

Supports

Low Voltage Alarm

Supports

Continuous Incorrect Password Protection

Supports (the lock will be automatically locked for 3 minutes if the recognition fails 5 times within 5 minutes, including fingerprint, password and proximity card)

Applicability

Applicable Types of Doors

Iron door / wooden door

Applicable Door Thickness

40 to 110 mm (1.57 to 4.33 inch)

General

Panel Material

Aluminum Alloy

Color

Black

Lock Body Type

Double-Quick Mechanical Lock Body

Clutched Lever

Supports

Lock core level

C-Level

Battery Type

4 AA alkaline batteries (included)

Battery Life

10 months (average 10 times per day)

Emergency Power Interface

Micro USB

Panel Dimensions

307 x 74 x 32 mm (12.08 x 2.91 x 1.26 inch)

Package Dimensions

418 x 255 x 157 mm (16.46 x 10.04 x 6.18 inch)

Net Weight

1785 g (62.96 oz)

Gross Weight

3935 g (138.80 oz)

Operating Environment

Temperature

-30°C to 70°C(-22°F to 158°F)

Humidity

10% to 95% (non-condensing)

In the box:

In the box:

- Front Panel - Rear Panel - Lock Body - AA alkaline battery × 4 - Proximity Card × 2 - Mechanical Key × 2 - Square Rod - Standard Screw Bag - Lock Body Screw Bag - Drilling Template - Quick Start Guide

Certifications:

Certifications:

CE-EMC / CE-RoHS / CE-LVD / FCC / CE14846
